Dukungan prosesor 10th dan 11th Gen Intel Core, dengan slot PCIe x16 untuk performa grafis tinggi. Kapasitas RAM hingga 128GB DDR4 pada kecepatan 5066MHz memastikan kinerja optimal. Dengan 3 slot M.2 PCIe 4.0 dan USB 3.2 Gen 2x2 Type-C, motherboard ini menawarkan fleksibilitas ekspansi yang tinggi. Desain RGB dan dukungan XMP membuatnya ideal untuk penggunaan gaming dan overclocking.
Spesifikasi
Harga
Rp3.490.000
2 produk
Tokopedia
Rp4.887.000
2 produk
Spesifikasi
Informasi dasar
Merek
MSI

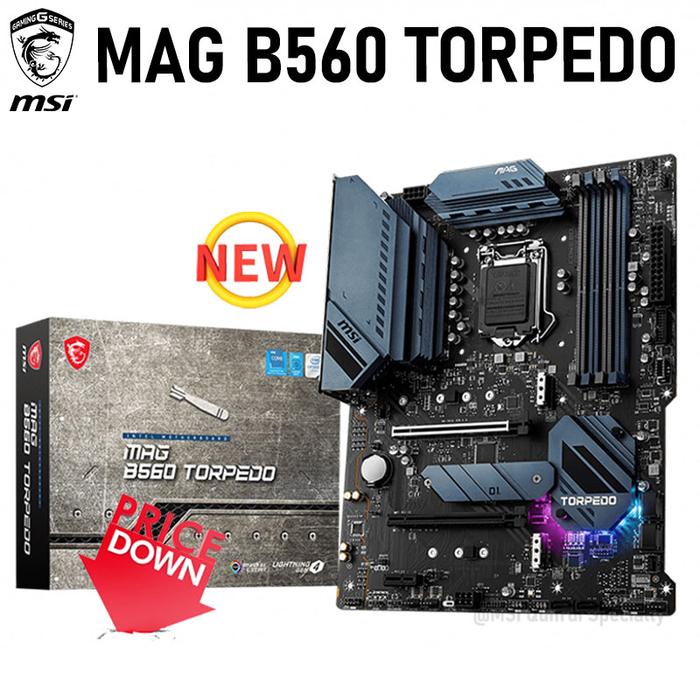

Model
MAG B560 Torpedo
Tipe soket
LGA1200
Prosesor yang didukung
10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold, Celeron®
Cipset
Intel® B560
Faktor bentuk
ATX
Memori
Kapasitas memori maksimal
128
Unit kapasitas memori maksimal
GB
Saluran memori
Dual-Channel
Slot memori
4
Kecepatan memori
5066
Unit kecepatan memori
MHz
Tipe memori
DDR4
Dukungan xmp
Intel® Extreme Memory Profile (XMP)
Slot ekspansi
Slot m2
[{"quantity": 3, "interface": "PCIe 4.0 x4, PCIe 3.0 x4, SATA", "max_speed": "64GB/s"}]
Slot pcie
[{"type": "PCIe x16", "quantity": 2, "speed": "PCIe 4.0 (11th Gen), PCIe 3.0 (10th Gen)"}, {"type": "PCIe x1", "quantity": 1, "speed": "PCIe 3.0"}]
Penyimpanan
Port sata
6
Kecepatan sata
6Gb/s
Fitur
Fitur bios
Clear CMOS jumper
Fitur debug
EZ Debug LED
Dukungan rgb
Ya
Konektivitas
Jaringan
Ethernet
Realtek® RTL8125B 2.5Gbps, Intel® I219V 1Gbps
Port usb
[{"type": "USB 3.2 Gen 2x2 Type-C", "quantity": 1, "speed": "20Gbps"}, {"type": "USB 3.2 Gen 2 Type-C", "quantity": 1, "speed": "10Gbps"}, {"type": "USB 3.2 Gen 1 Type-A", "quantity": 6, "speed": "5Gbps"}, {"type": "USB 2.0", "quantity": 4, "speed": null}]
Output video
Hdmi
1
Displayport
1
Spesifikasi fisik
Panjang
30.5
Unit panjang
cm
Lebar
24.4
Unit lebar
cm
Pendingin
Heatsink
M.2 Shield Frozr
Audio
Saluran
7.1-Channel
Kodek
Realtek® ALC897
Fitur
HD Audio, S/PDIF output
Sistem daya
Konektor daya
[{"type": "ATX", "quantity": 1}]
